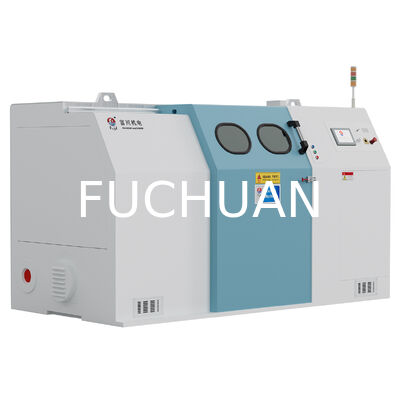

High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan

High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan
High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan
High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan

تصویر بزرگ :  High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan

جزئیات محصول:
محل منبع: چین
نام تجاری: Fuchuan
گواهی: CE
شماره مدل: FC-650B
پرداخت:
مقدار حداقل تعداد سفارش: 1 مجموعه
قیمت: negotiable
جزئیات بسته بندی: به سادگی بسته بندی شده است
زمان تحویل: 30 روز
شرایط پرداخت: t/t ،
قابلیت ارائه: 200Set در ماه
مخاطب

High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan

شرح
ظرفیت دسته بندی: 2 تا 19 سیم وزن: 1000 تا 3000 کیلوگرم
تایپ کنید: دستگاه دسته بندی دو پیچ نوع ماشین: ماشین تاب
مواد: مس ، آلومینیوم سیم تک هسته ای: 0.8mm-3.0mm
قدرت: 7.5 کیلو وات نوع کنترل: کنترل موتور
برنامه: دسته بندی و پیچاندن سیم سیستم کنترل: کنترل PLC با صفحه لمسی
نوع موتور: سروو موتور AC ظرفیت: ظرفیت بالا
دیا یک سیم.: 0.15-1.04
برجسته کردن:

650B automatic double twist bunching machine,high-speed copper wire bunching machine,double twist machine for wire manufacturing

,

high-speed copper wire bunching machine

,

double twist machine for wire manufacturing

Product Description


Normal Wire High Speed Bunching Machine and Double Twist Bunching Machine
Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects. Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth operation. It is suitable for stranding conductors such as bare copper wire, tinned wire, silver-plated wire, and enameled wire with seven or more strands, and core wire double twist.
Specification
Features
1. Ethernet port is reserved for IoT access, which can display the speed, stranding details, line speed, equipment maintenance, etc.

2. PLC control+Magnetic powder clutch, perfectly ensure the constant tension from empty to full spool.

3. With bearing type polished rod traversing, traversing width and lay length is adjustable.

4. Suitable for stranding of extremely fine conductors (alloy wire, tin-plated wire, silver-plated wire, enameled wire, etc. with seven or more strands) in aerospace, medical devices, mobile phones, laptops, etc.

High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan 0
High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan 1
High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan 2
High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan 3
Technical Specifications
(Custom configurations available upon request.)
Model
FC-500B
FC-650B
FC-650B pro
FC-800B
FC-651D
Wire dia. (mm)
Φ0.08-0.45
Φ0.15-1.04
Φ0.20-1.70
Φ0.20-1.70
Φ0.16-1.04
Cross section (mm2 )
0.05-2.5
0.35-6.0
1.0-16.0
1.0-16.0
0.4-6.0
Core wire dia. (mm)
Φ0.5-1.5
Φ0.8-3.0
Φ1.5-4.0
Φ1.5-4.0
N/A
Overall Diameter of Stranded Core
Φ1.0-3.0
Φ1.6-6.0
Φ3.0-8.0
Φ3.0-8.0
N/A
Pitch (mm)
6.3-52.3
11.6-100
20-160
23-160
10-100
Spool size (mm)
Φ400-500
Φ500-630
Φ500-630
Φ630-800
Φ500-630
Max speed (rpm)
3000
2000
1600
1600
2000
Stranding direction
S/Z
S/Z
S/Z
S/Z
S/Z
Main motor power
5.5KW
7.5KW
11KW
15KW
7.5KW
Tension control
PLC+Magnetic powder clutch
Protection
Automatic brake on wire break by electromagnetic brake
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan 4
After Sales Service
Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan 5
Kunshan Fuchuan Electrical & Mechanical Co., Ltd.
Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan 6
High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan 7
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Stranding machine
Back-twist bunching machine
Signle twist bunching machine
Torsion-free cable-laying machine
Pay-off machine
Extruding machine
Rewinding machine
Certifications
High-Speed 650B Automatic Double Twist Bunching Machine for Copper Wire Manufactured by Fuchuan 8
Fuchuan has obtained dozens of certifications and certificates, and hundreds of patents.
With ISO9001
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 60–90 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
