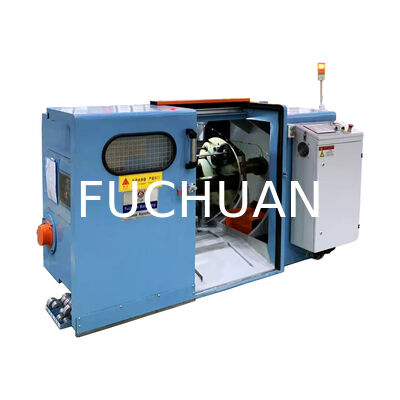

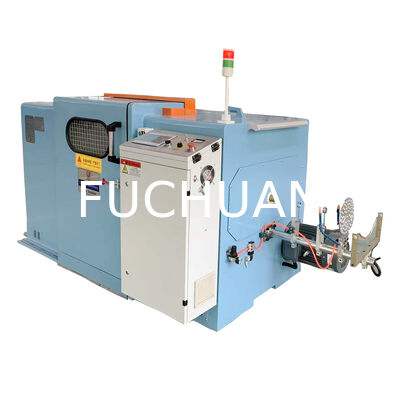

Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors

Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors
Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors
Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors

تصویر بزرگ :  Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors

جزئیات محصول:
محل منبع: چین کونشان
نام تجاری: FUCHUAN
گواهی: CE
شماره مدل: FC-250B
پرداخت:
مقدار حداقل تعداد سفارش: 1 مجموعه
قیمت: negotiable
جزئیات بسته بندی: به سادگی بسته بندی شده است
زمان تحویل: 45 روز
شرایط پرداخت: T/T، L/C
قابلیت ارائه: 200Set در ماه
مخاطب

Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors

شرح
مشخصات قرقره: φ200mm-φ250 ولتاژ: 380 ولت
سیم: 0.03mm-0.18mm زمین: قابل تنظیم است
حداکثر سرعت چرخش: 800 (1600tpm) رنگ: آبی آسمانی / سبز سیبی
پایان: مزاج و سنگ زنی حالت عملیات: عملکرد صفحه نمایش لمسی
نام دیگر: دستگاه پانچ مس بوبین را بردارید: قطر 250 میلیمتر
برجسته کردن:

automatic copper wire bunching machine,high speed stranding machine,ultra fine conductor stranding machine

,

high speed stranding machine

,

ultra fine conductor stranding machine

Basic Info.

Model NO.
FC-250B
Condition
New
Certification
FDA, RoHS, ISO, CE
Warranty
24 Months
Automatic Grade
Automatic
Mould Life
<300,000 Shots
Type
High-speed Stranding Machine
Model No.
FC-250b
Bow
Carbon Fiber/Stainless Steel
Color
Customized
Etd
30days
Max Speed
4000rpm
Power
4kw
Transport Package
Wooden Box
Specification
1000kg
Trademark
FCJD
Origin
Kunshan, China
HS Code
8479400000
Production Capacity
200 Sets Per Month

Product Description


Series of Model B Ultra Fine Wire High Speed Bunching Machine
Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing
projects. Designed with advanced technology and robust materials, this bunching machine ensures high
speed, smooth operation. It is suitable for stranding of extremely ultra fine conductors (alloy wire, tin-plated
wire, silver-plated wire, enameled wire, etc. with seven or more strands) in aerospace, medical devices,
mobile phones, laptops, etc.
Specification
Technical Specifications
(Custom configurations available upon request.)
Model
FC-250B
FC-300B
FC-400B
FC-450B
Wire dia. (mm)
Φ0.03-0.18
Φ0.04-0.28
Φ0.05-0.32
Φ0.05-0.32
Cross section (mm2 )
0.0049-0.3
0.0088-0.45
0.0137-1.0
0.0137-1.0
Pitch (mm)
0.8-10.8
1.6-21.6
3.1-33.3
3.1-33.3
Take-up Spool size (mm)
Φ200-Φ250
Φ250-Φ300
Φ300-Φ400
Φ300-Φ450
Main motor power
4.0KW
4.0KW
4.0KW
4.0KW
Inverter Power
3.7KW
3.7KW
3.7KW
3.7KW
Max speed (rpm)
4000
3500
3000
3000
Stranding direction
S/Z
S/Z
S/Z
S/Z
Magnetic power clutch
0.3kgf
0.6kgf
0.6kgf
0.6kgf
Tension control
PLC+Magnetic powder clutch
Protection
Automatic brake on wire break by electromagnetic brake
Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors 0



Features
1. Ethernet port is reserved for IoT access, which
can display the speed, stranding details, line speed,
equipment maintenance, etc.

2. PLC control+Magnetic powder clutch, perfectly
ensure the constant tension from empty to full spool.

3. With bearing type polished rod traversing, traversing
width and lay length is adjustable.

Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors 1
Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors 2
Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors 3

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team
can provide tailored designs to meet specific project requirements.
Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors 4
After Sales Service
Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile
Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors 5
Kunshan Fuchuan Electrical & Mechanical Co., Ltd.
Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over
20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed
by R&D innovation and strict quality control.
Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors 6
Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors 7
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Stranding machine
Back-twist bunching machine
Single twist bunching machine
Torsion-free cable-laying machine
Pay-off machine
Extruding machine
Rewinding machine
Certifications
Copper Wire Bunching Machine automatic model FC 250B for high speed stranding of ultra fine conductors 8
Fuchuan has obtained dozens of certifications and certificates, and hundreds of patents.
With ISO9001
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 60–90 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
