High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher

High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher
High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher
High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher

تصویر بزرگ :  High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher

جزئیات محصول:
محل منبع: چین کونشان
نام تجاری: FUCHUAN
گواهی: CE
شماره مدل: FC-1250B
پرداخت:
مقدار حداقل تعداد سفارش: 1 مجموعه
قیمت: negotiable
جزئیات بسته بندی: به سادگی بسته بندی شده است
زمان تحویل: 45 روز
شرایط پرداخت: T/T، L/C
قابلیت ارائه: 200Set در ماه
مخاطب

High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher

شرح
مشخصات قرقره: φ1250mm ×φ80mm×950mm ولتاژ: 380 ولت
سیم: 1.0mm-2.52mm زمین: قابل تنظیم است
حداکثر سرعت چرخش: 800 (1600tpm) رنگ: آبی آسمانی / سبز سیبی
پایان: مزاج و سنگ زنی حالت عملیات: عملکرد صفحه نمایش لمسی
نام دیگر: دستگاه پانچ مس بوبین را بردارید: قطر 1250 میلی متر
برجسته کردن:

high speed copper wire buncher,double twist buncher machine,1250 buncher machine

,

double twist buncher machine

,

1250 buncher machine

Basic Info.

Model NO.
FC-1250B
Condition
New
Certification
FDA, RoHS, ISO, CE
Warranty
24 Months
Automatic Grade
Automatic
Mould Life
<300,000 Shots
Type
High-speed Stranding Machine
Bow
Carbon Fiber/Stainless Steel
Color
Customized
Etd
30-45days
Max Speed
800rpm
Power
22kw
Transport Package
Wooden Box
Specification
5000kg
Trademark
FCJD
Origin
Kunshan, China
HS Code
8479400000
Production Capacity
200 Sets Per Month

Product Description


Series of Model B Large Wire High Speed Bunching Machine
Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects.
Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth
operation. It is suitable for stranding conductors such as BVR and RVV bare copper wires, tinned wires, and
aluminum alloy wires with seven or more strands, as well as for cabling of power line cores.
Specification
Technical Specifications
(Custom configurations available upon request.)
Model
FC-1000B
FC-1250B
FC-1600B
Wire dia. (mm)
Φ0.85-2.14
Φ1.0-2.52
Φ1.0-2.52
Cross section (mm2 )
4.0-25.0
6.0-35.0
6.0-35.0
Core wire dia. (mm)
Φ2.0-4.0
Φ3.0-6.0
Φ3.0-6.0
Overall Diameter of Stranded Core
Φ4.0-10.0
Φ6.0-12.0
Φ6.0-12.0
Pitch (mm)
35-149
41-155
47-275
Take-up Spool size (mm)
Φ1000*Φ80*750
Φ1250*Φ80*950
Φ1600*Φ80*1180
Max speed (rpm)
1000
800
600
Stranding direction
S/Z
S/Z
S/Z
Main motor power
18.5KW
22KW
22KW
Tension control
PLC+Magnetic powder clutch
Protection
Automatic brake on wire break by electromagnetic brake
Features
1. Ethernet port is reserved for IoT access, which can display the speed, stranding details, line speed, equipment maintenance, etc.

2. PLC control+Magnetic powder clutch, perfectly ensure the constant tension from empty to full spool.

3. With bearing type polished rod traversing, traversing width and lay length is adjustable.

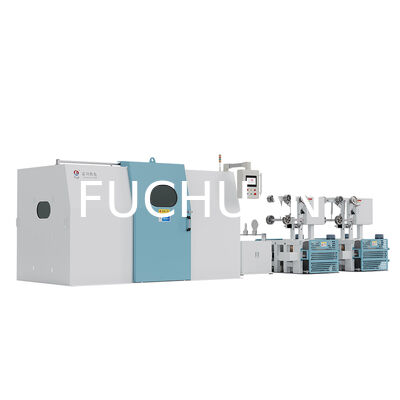

High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher 0

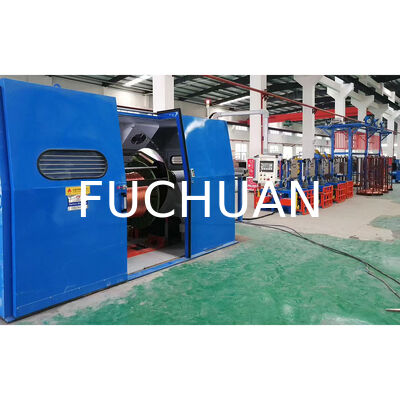

High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher 1

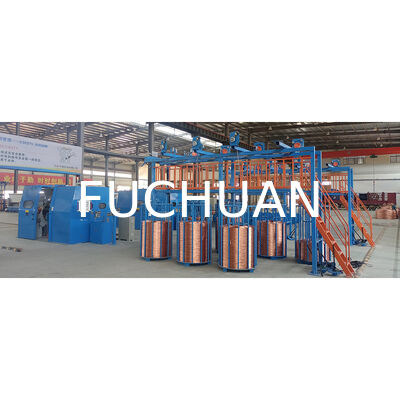

High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher 2

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can
provide tailored designs to meet specific project requirements.

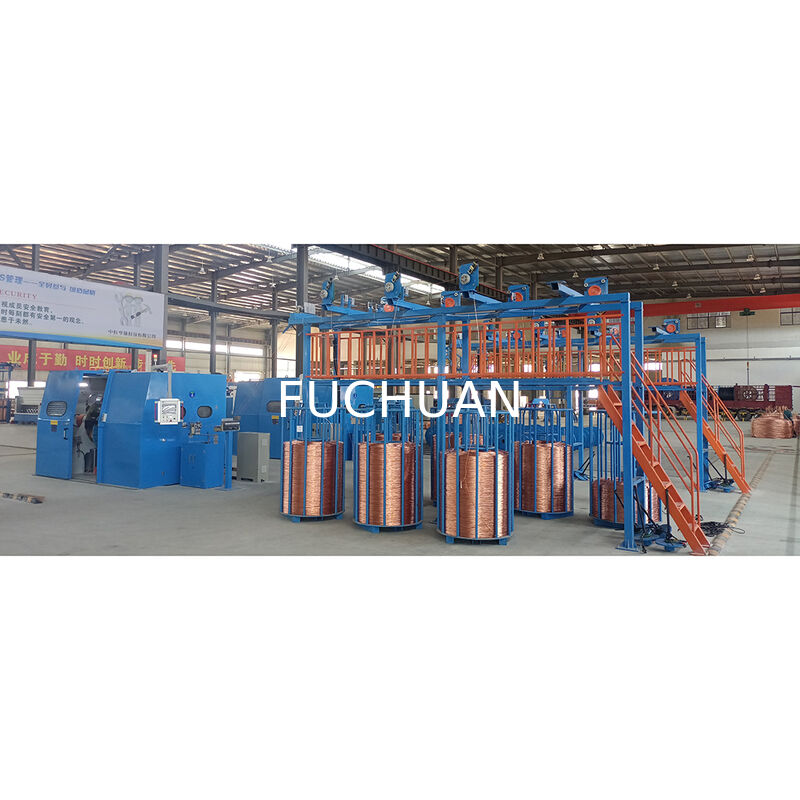

High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher 3
After Sales Service
Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Company Profile

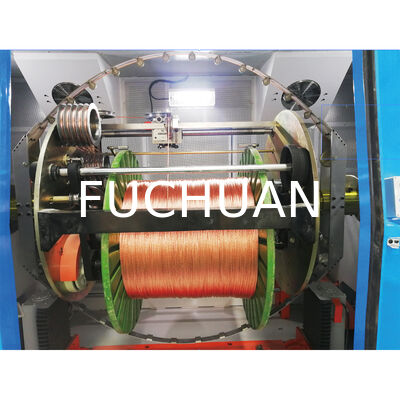

High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher 4
Kunshan Fuchuan Electrical & Mechanical Co., Ltd.
Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over 20 years
of expertise. Certified with ISO 9001, CE, GOST, we export to 100+ countries, offering reliable machinery backed by R&D innovation
and strict quality control.
High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher 5
High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher 6
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Stranding machine
Back-twist bunching machine
Signle twist bunching machine
Torsion-free cable-laying machine
Pay-off machine
Extruding machine
Rewinding machine
Certifications
High Speed Copper Wire Bunching Machine Double Twist Buncher Machine 1250 Buncher 7
Fuchuan has obtained dozens of certifications and certificates, and hundreds of patents.
With ISO9001
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 60–90 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
